Technical Details: Datasheet diamond burnishing tool cylindrical shank, variable
Diamant-Glättwerkzeug Zylinderschaft, variabel

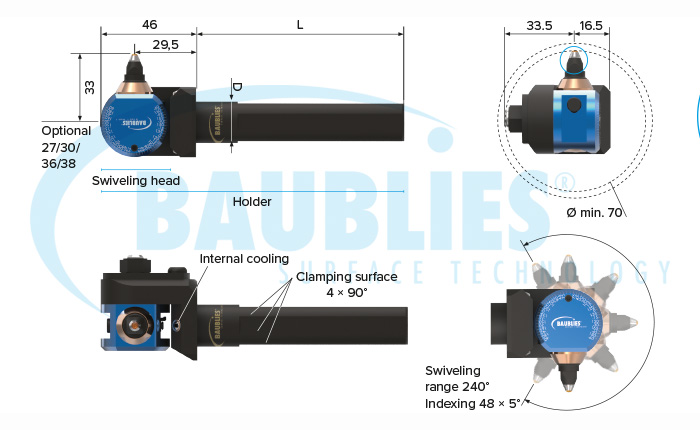

| Application | internal holes and contours |
| Standard fixture | cylindrical shank Ø 20/22/25/32/40 mm |
| Swiveling range | 240° |
| Indexing | 48 x 5° |
Options
- Tailor made fixtures VDI, HSK, 3/4″, 1″, etc.
- Tailor made diamond shape
- Assembly device
Application parameters
Please note that this information represents standard values which must be adapted to the individual cases.
| Speed | up to 150 m/min |
| Feed rate | 0,05 to 0,2 mm/U |
| Workpiece allowance | up to 0,02 mm |
| Tool preload | up to 1 mm |
| Lubrication | emulsion or oil; filtration of the lubricant (< 40 µm) can improve the surface quality and the tool life |
| Pre-machining of workpiece | surface roughness (Rz) up to 15 µm |
| Suitable for hard machining |
You require further information about this specific tool?
Please contact us or send us an e-mail. We will gladly inform you about further details on our tools.
Phone: +49 (0)7159 92 87-90
Variable diamond burnishing tools for internal use are non-intrinsic tools for smoothening and work hardening of holes and contours. Due to the swiveling diamond these tools are very versatile.
ADVANTAGES
- Simple to use
- Compact design available for machines with limited tool space
- Can be adapted to all materials by means of four spring elements (included in delivery)
- Diamond radii from 0.4–5 mm available
- Diamond indexed for multiple machining
- Highest surface quality and hardening
- Universally applicable
- Ideal for contour machining
- For hard machining and thin-walled workpieces
- Tolerance compensation through spring-loaded design
- Changeable diamond insert
- Re-grinding of the diamond is possible
- Cost-effective/low investment
Assembly device (optional)
