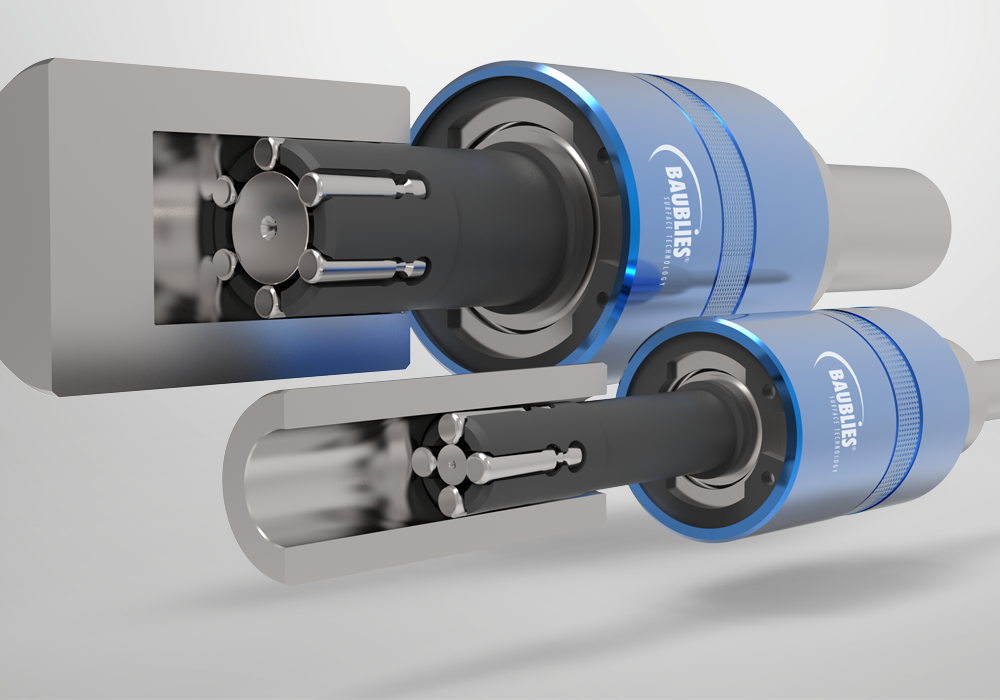

Internal roller burnishing tool usable for through hole and blind hole

Piktogramm Innenbearbeitung Durchgangsbohrung
Piktogramm Innenbearbeitung Sackloch

Technical data

Application blind hole and through hole
Fixture as required
Rolling depth as required
Diameter range from 4 mm
Internal coolant optional
Different number of rollers optional

Parameters

Workpiece allowance up to 0.02 mm

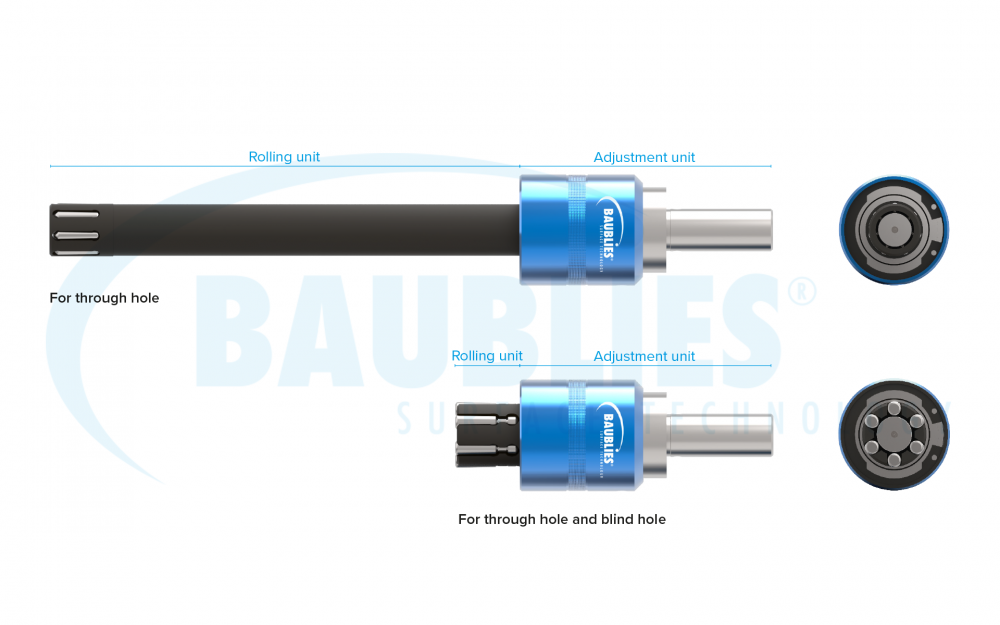

Internal roller burnishing tool in the design for through holes, with a machining length exceeding the standard, are suitable for use on virtually all common machines, e.g. lathe machines, both conventional and CNC machines.

ADVANTAGES

  • Very short machining time
  • Surface finishes of the highest quality
  • High productivity
  • Both workpiece or tool can be driven
  • Fast return of investment
  • Easy to maintain
  • Slim design
  • Usable on all common machines
    (no special machine required)
