Internal roller burnishing tool PICCOLINO

Piktogramm Innenbearbeitung Durchgangsbohrung
Piktogramm Innenbearbeitung Sackloch

Technical data

Application blind hole and through hole
Fixture as required
Rolling depth as required
Diameter range from 4 mm
Adjustment range -0,1 up to +0,1 mm
Internal coolant optional from Ø 8 mm

Parameters

Workpiece allowance up to 0.02 mm
Tool preclamping up to 0.03 mm
Rotation direction of tool clockwise rotation (M3)
Return traverse in rapid traverse (G0)
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 12 µm, tolerance IT 8 or better
Workpiece hardness 45 HRC

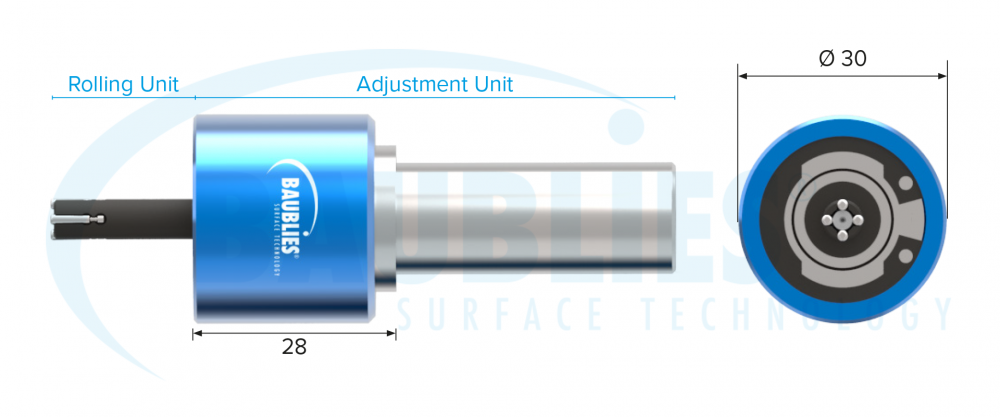

PICCOLINO internal roller burnishing tools are a particularly compact design for use on machines with limited working space, such as multi-spindle and Swiss-Type lathes or rotary transfer machines.

When setting the tool diameter above the  nominal size of the tool then the taper will overlap the cage. Therefore the dimension “X” (see overleaf) will increase. This increase will be about 0.2 mm per 0.01 mm diameter en-largement ( = one mark on the tool scale) of the tool setting.

Werkzeugeinstellung

ADVANTAGES

  • Very short machining time
  • Surface finishes of the highest quality
  • High productivity
  • Fast return of investment
  • Easy to maintain
  • Slim design
  • Usable on all common machines
