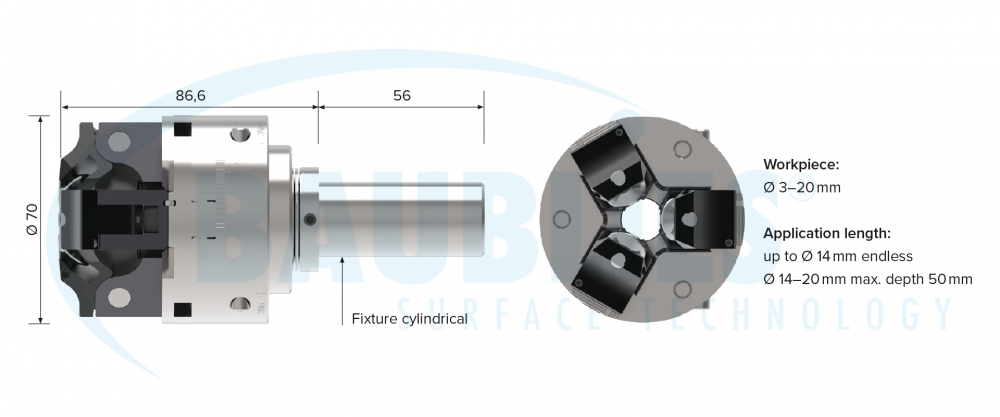

Tailor made tool for work hardening radii

Piktogramm Außenbearbeitung Radien

Technical data

Application work hardening radii
Diameter range (Ø) from Ø 3 mm
Tailor made fixture VDI, HSK etc.
Diameter range (Ø)

Parameters

Speed up to 30 m/min
Feed rate up to 0.2 mm/U
Lubrication Emulsion or oil; filtering the lubricant (< 40 µm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm

Tailor made tool for radii: These tools are especially designed for work hardening e.g. dynamically loaded fasteners in aerospace or racing applications.

ADVANTAGES

  • Very short machining time
  • Tool stationary and rotating possible
  • High productivity
  • Application on different machines possible
  • Simple replacement of wear parts
  • Slim design
  • Diameter is continuously adjustable
  • Fast roller-replacement for diffrent radii
  • No transverse machining force to the machining axis
