Single-roller burnishing tool for internal-, external- and taper machining

Piktogramm Außenbearbeitung Kegel
Piktogramm Außenbearbeitung Bund
Piktogramm Innenbearbeitung Durchgangsbohrung
Piktogramm Innenbearbeitung Sackloch

Technical data

Application internal-, external-, and taper machining
Standard fixture square shank 25 mm
Diameter range (Ø) from 35 mm
roller carbide

Parameters

Speed up to 200 mm/min
Feed rate 0.05–0.3 mm/U
Workpiece allowance up to 0.02 mm
Tool preclamping up to 0,5 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm
Workpiece hardness 45 HRC

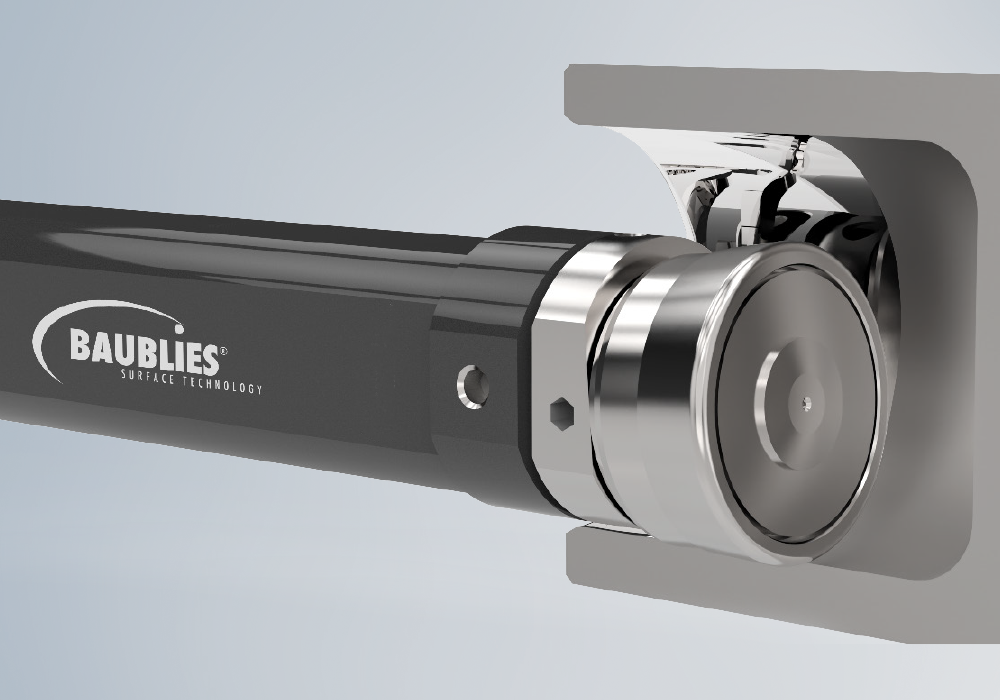

This single roller burnishing tool is used for burnishing rotationally symmetrical internal and external diameters. It also can be used for taper machining.



ADVANTAGES

  • Universally usable
  • Easy to use
  • Slim design
  • Fast return of investment
