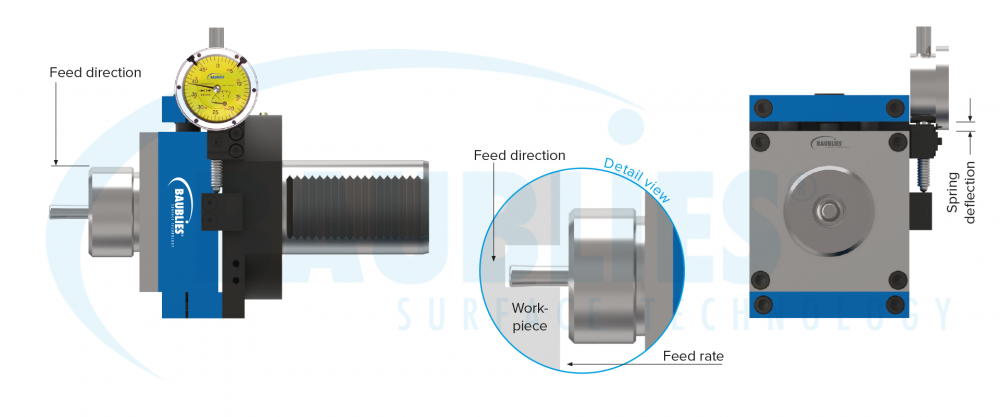

Single-roller burnishing tool for axial recess grooves

Piktogramm Innenbearbeitung-Axialeinstich

Technical data

Application recess grooves
Fixture as required
roller radius as required

Parameters

Speed up to 120 m/min
Feed rate 0.05–0.15 mm/U
Workpiece allowance up to 0.01 mm
Spring deflection up to 5 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm
Workpiece hardness 45 HRC

Single-roller burnishing tool for burnishing recess grooves.

ADVANTAGES

  • Fast return of investment
  • Optimized construction of rollers for machining application
  • High productivity
  • Slim design
  • Simple replacement of wear parts
