Diamond burnishing tool variable, square shank

Baublies Diamantglättwerkzeug für die Außenbearbeitung zum Glätten und Verfestigen von Wellen und Konturen
Piktogramm Außenbearbeitung Kegel
Piktogramm Außenbearbeitung Bund
Piktogramm dünnwandige Bauteile
Piktogramm kleiner HRC60
Piktogramm Außenbearbeitung Kontur
Piktogramm Außenbearbeitung Kugel
Piktogramm Außenbearbeitung Planfläche

Technical data

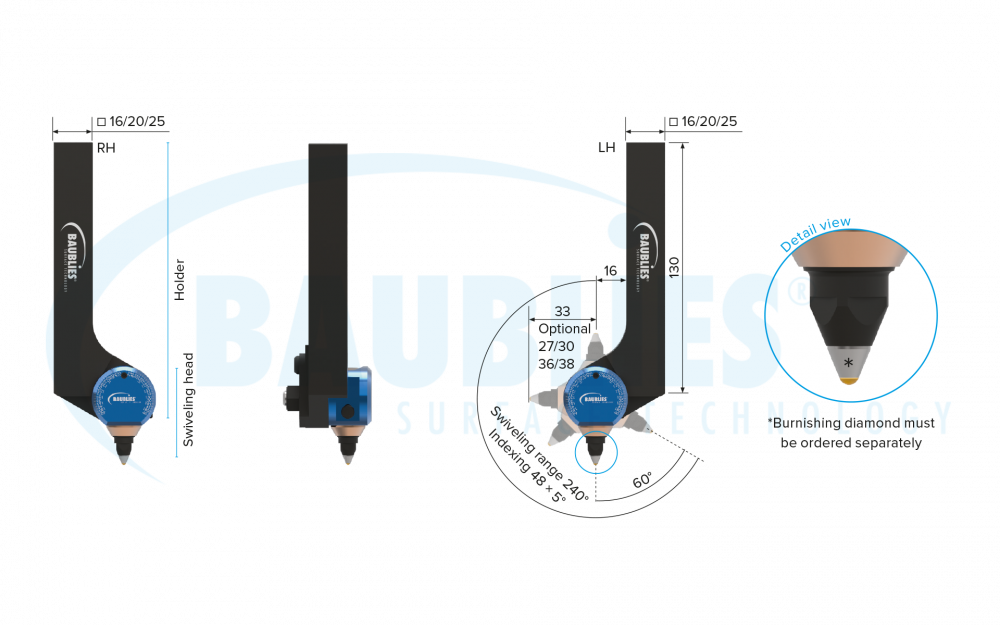

Standard fixture square shank 16/20/25 mm left or right hand
Adjustment range (V) 240°
Indexing 48 × 5°
Tailor made fixture VDI, HSK etc. optional
Tailor made diamond shape optional
Assembly device optional

Parameters

Speed up to 150 mm/min
Feed rate 0.05–0.2 mm/U
Workpiece allowance up to 0.02 mm
Tool preclamping up to 1 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm
Suitable for hard machining

Variable diamond burnishing tools for external use are non-intrinsic tools for smoothening and work hardening of shafts and contours. Due to the swiveling diamond these tools are very versatile.

ADVANTAGES

  • Simple to use
  • Compact design available for machines with limited tool space
  • Can be adapted to all materials by means of four spring elements (included in delivery)
  • Diamond radii from 0.4–5 mm available
  • Diamond indexed for multiple machining
  • Highest surface quality and hardening
  • Universally applicable
  • Ideal for contour machining
  • For hard machining and thin-walled workpieces
  • Tolerance compensation through spring-loaded design
  • Changeable diamond insert
  • Re-grinding of the diamond is possible
  • Cost-effective/low investment
