Diamond burnishing tool for recessing

Piktogramm Außenbearbeitung Kegel
Piktogramm kleiner HRC60
Piktogramm Außenbearbeitung-Einstich
Piktogramm Außenbearbeitung Planfläche

Technical data

Application chamfers, recesses and flat surfaces

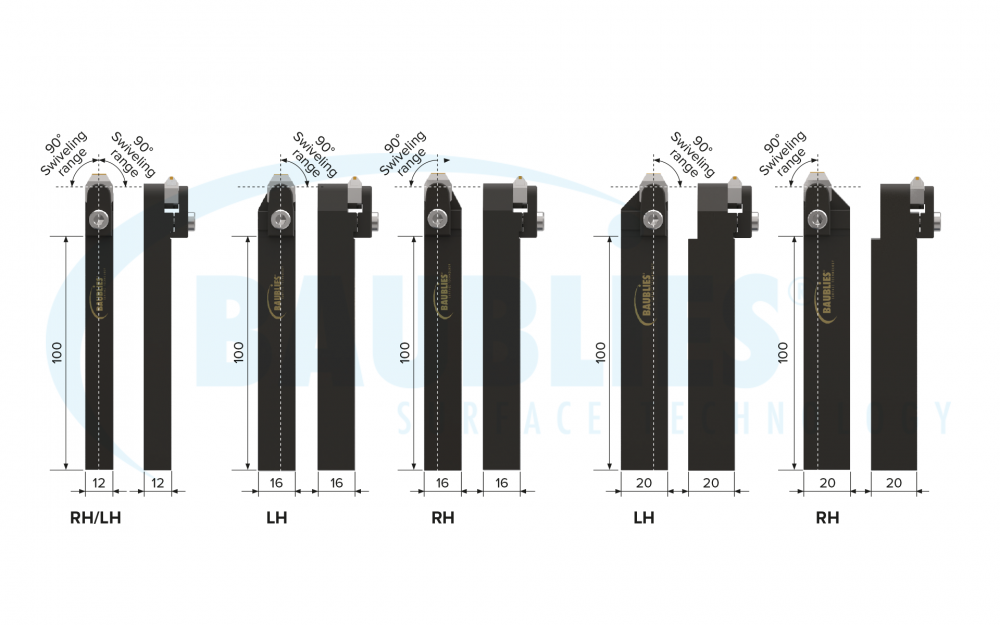

Standard fixture square shank 12/16/20 mm; left hand or right hand
Tailor made fixture VDI, HSK etc.
Tailor made diamond shape optional

Parameters

Speed up to 150 mm/min
Feed rate 0.05–0.1 mm/U
Workpiece allowance up to 0.01 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 µm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 10 µm
Suitable for hard machining

Diamond burnishing tools are shaped tools for smoothing and work hardening of chamfers, recesses and flat surfaces.

ADVANTAGES

  • Universally useable
  • Suitable for hard machining and thin walled workpieces
  • Slim design enables the application in small spaced machine tools
  • Adjustable diamond insert (angle) Changeable diamond insert
