Diamond burnishing tool for external use, straight

Application	external shafts, contours, plane surfaces
Standard fixture	square shank 10/12/16/20/25 mm
Tailor made fixture	VDI, HSK etc.
Tailor made diamond shape	optional
Assembly device	optional

Speed	up to 150 mm/min
Feed rate	0.05–0.2 mm/U
Workpiece allowance	up to 0.02 mm
Tool preclamping	up to 1 mm
Lubrication	Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece	Surface roughness up to Rz 15 µm
Suitable for hard machining

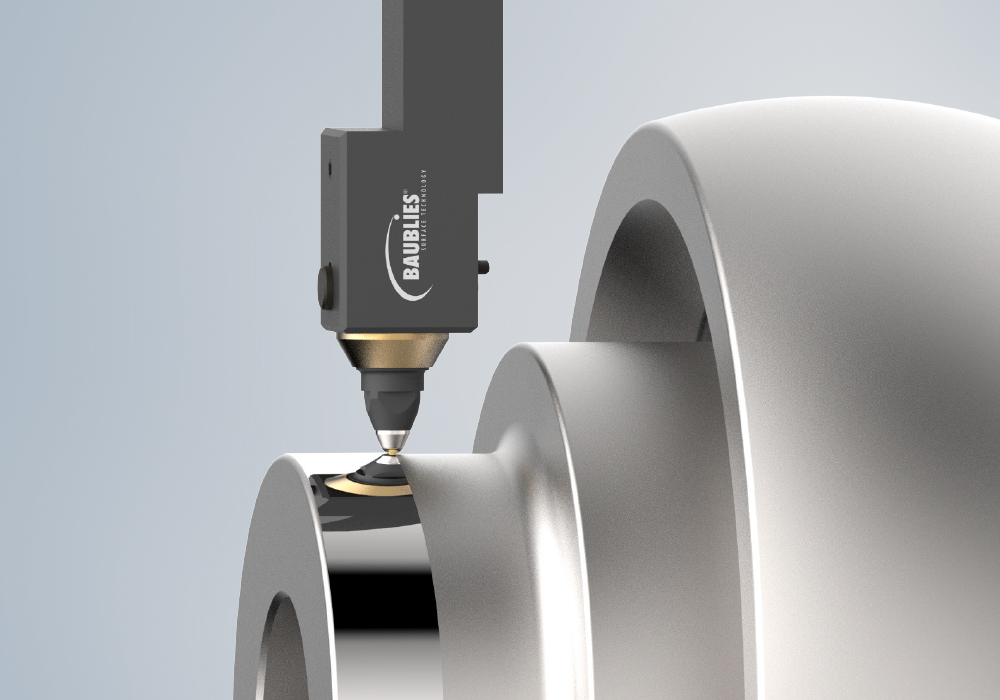

Diamond burnishing tool for external use are non-intrinsic tool for smoothening and work hardening of shafts, contours and plane surfaces.

ADVANTAGES

Simple to use
Compact design available for machines with limited tool space
Can be adapted to all materials by means of four spring elements (included in delivery)
Diamond radii from 0.4–5 mm available
Diamond indexed for multiple machining
Highest surface quality and hardening
Universally applicable
Ideal for contour machining
For hard machining and thin-walled workpieces
Tolerance compensation through spring-loaded design
Changeable diamond insert
Re-grinding of the diamond is possible
Cost-effective/low investment
