Diamond burnishing tool for external use

Baublies Diamant-Glättwerkzeug zum Glätten und Verfestigen von Wellen, Konturen, Planflächen und Freiformflächen
Piktogramm Außenbearbeitung Kegel
Piktogramm Außenbearbeitung Bund
Piktogramm dünnwandige Bauteile
Piktogramm Außenbearbeitung Form
Piktogramm Außenbearbeitung-Freifläche
Piktogramm kleiner HRC60
Piktogramm Außenbearbeitung Kontur
Piktogramm Außenbearbeitung Kugel
Piktogramm Außenbearbeitung Planfläche

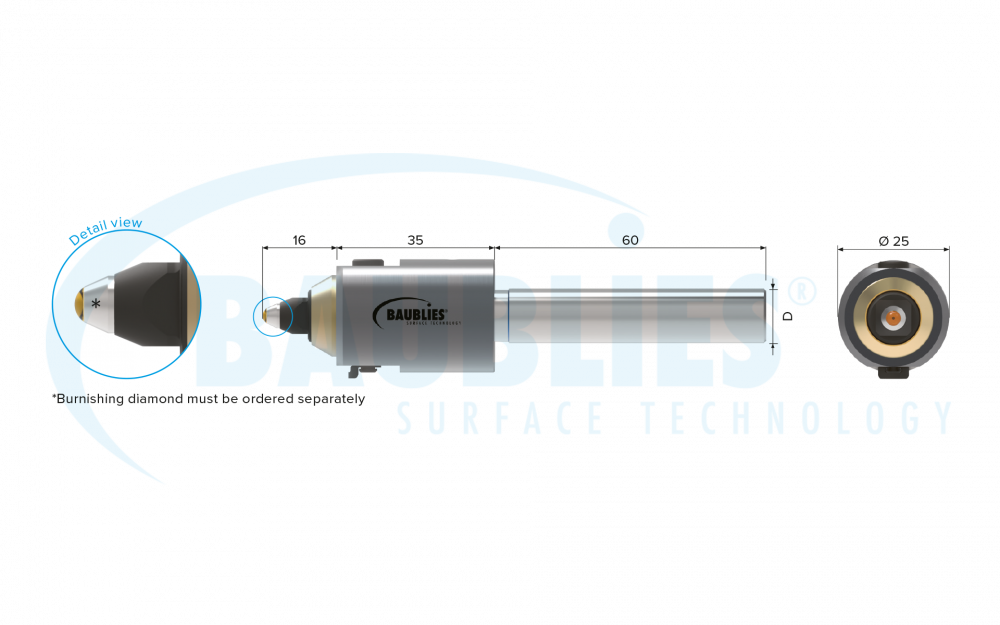

Technical data

Application external shafts, contours, plane surfaces and free formed surfaces
Standard fixture (D) cylindrical shank Ø 10/12/16/20/22/25 mm
Tailor made fixture VDI, HSK etc.
Tailor made diamond shape optional
Assembly device optional

Parameters

Speed up to 150 mm/min
Feed rate 0.05–0.2 mm/U
Workpiece allowance up to 0.02 mm
Tool preclamping up to 1 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm
Suitable for hard machining

Diamond burnishing tool for external use are non-intrinsic tool for smoothening and work hardening of shafts, contours, plane surfaces and free formed surfaces.

ADVANTAGES

  • Simple to use
  • Compact design available for machines with limited tool space
  • Can be adapted to all materials by means of four spring elements (included in delivery)
  • Diamond radii from 0.4–5 mm available
  • Diamond indexed for multiple machining
  • Highest surface quality and hardening
  • Universally applicable
  • Ideal for contour machining
  • For hard machining and thin-walled workpieces
  • Tolerance compensation through spring-loaded design
  • Changeable diamond insert
  • Re-grinding of the diamond is possible
  • Cost-effective/ low investment
