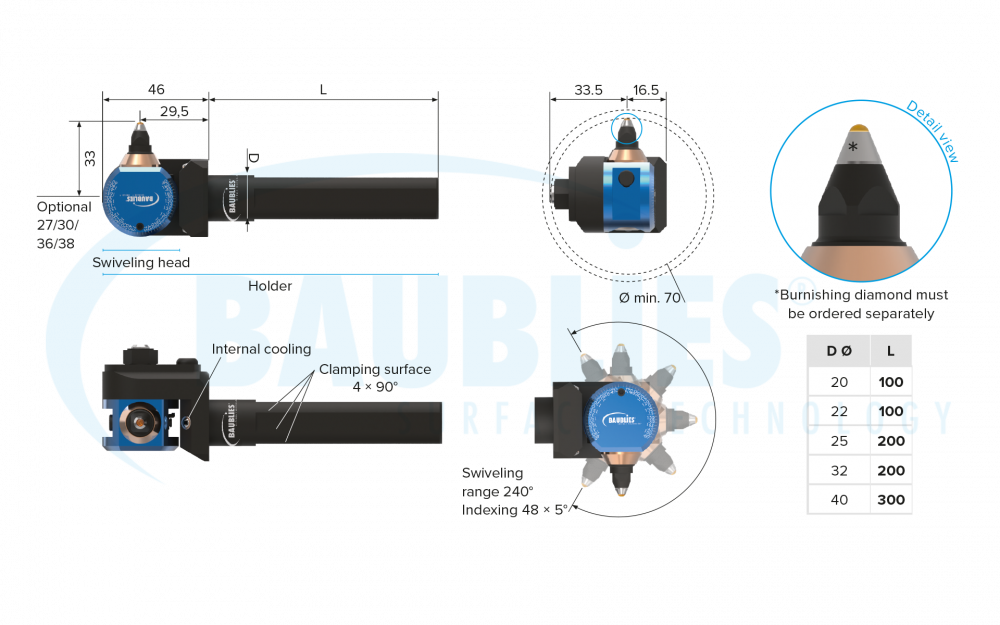

Diamond burnishing tool variable, cylindrical shank

Baublies Diamant-Glättwerkzeug zum Glätten und Verfestigen von Bohrungen und Konturen
Piktogramm Außenbearbeitung Kegel
Piktogramm Außenbearbeitung Kontur
Piktogramm Außenbearbeitung Kugel
Piktogramm Innenbearbeitung Durchgangsbohrung
Piktogramm kleiner HRC60
Piktogramm Innenbearbeitung Kontur
Piktogramm Innenbearbeitung Sackloch

Technical data

Application machining of holes and contours
Standard fixture cylindrical shank Ø 20/22/25/32/40 mm
Swiveling range 240°
Indexing 48 × 5°
Tailor made fixture VDI, HSK, , 3/4″, 1″, etc.
Tailor made diamond shape optional
Assembly device optional

Parameters

Speed up to 150 mm/min
Feed rate 0.05–0.2 mm/U
Tool preclamping up to 1 mm
Lubrication Emulsion or oil; filtering the lubricant (< 40 µm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm
Suitable for hard machining

Variable diamond burnishing tools for internal use are non-intrinsic tools for smoothening and work hardening of holes and contours. Due to the swiveling diamond these tools are very versatile.

ADVANTAGES

  • Simple to use
  • Compact design available for machines with limited tool space
  • Can be adapted to all materials by means of four spring elements (included in delivery)
  • Diamond radii from 0.4–5 mm available
  • Diamond indexed for multiple machinin
  • Highest surface quality and hardening
  • Universally applicable
  • Ideal for contour machining
  • For hard machining and thin-walled workpieces
  • Tolerance compensation through spring-loaded design
  • Changeable diamond insert
  • Re-grinding of the diamond is possible
  • Cost-effective/low investment
