Technical data

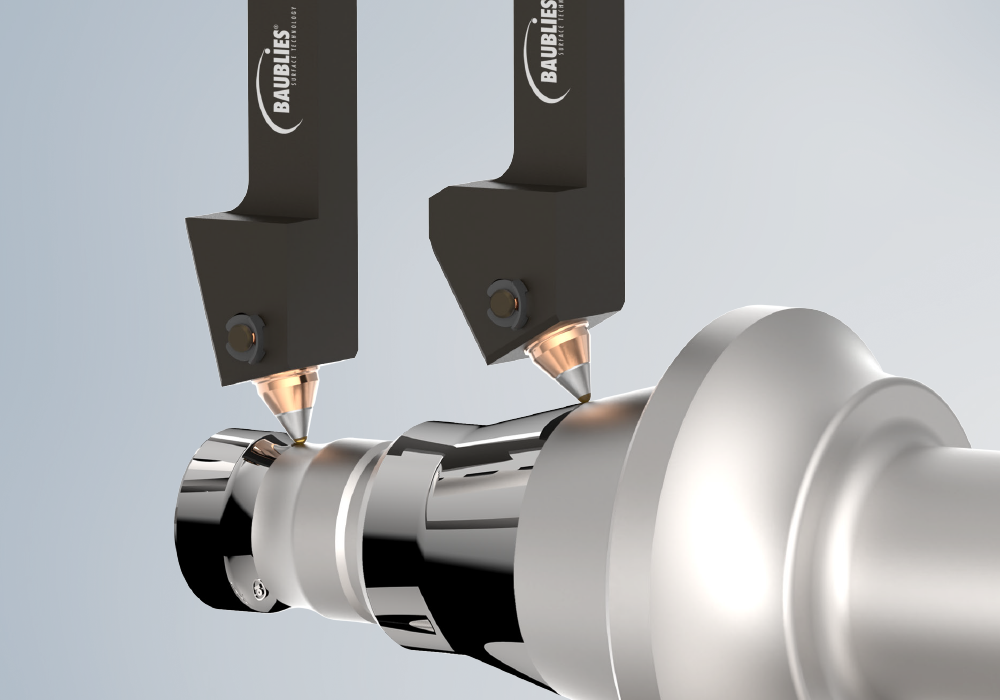

| Application | external shafts, contours and plane surfaces |

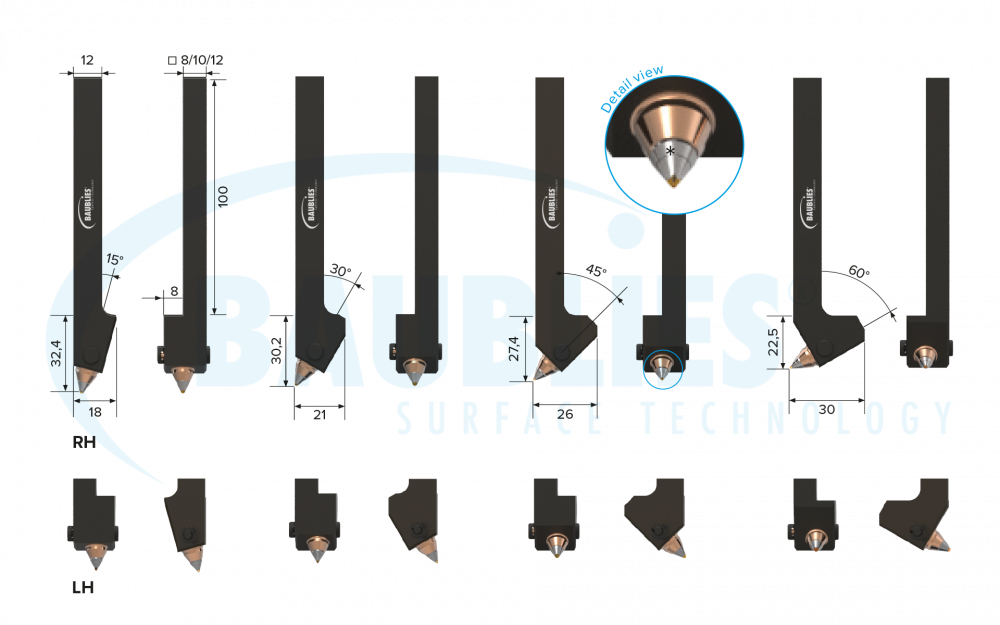

| Standard fixture | square shank 8 × 12, 10 × 12, 12 × 12 mm left or right hand |
| Tailor made fixture | tailor made |
| Tailor made diamond shape | optional |
| Assembly device | optional |
Parameters
| Speed | up to 150 mm/min |
| Feed rate | 0.05–0.2 mm/U |
| Workpiece allowance | up to 0.02 mm |
| Tool preclamping | up to 1 mm |
| Lubrication | Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool. |
| Pre-machining of workpiece | Surface roughness up to Rz 15 µm |
| Suitable for hard machining |
