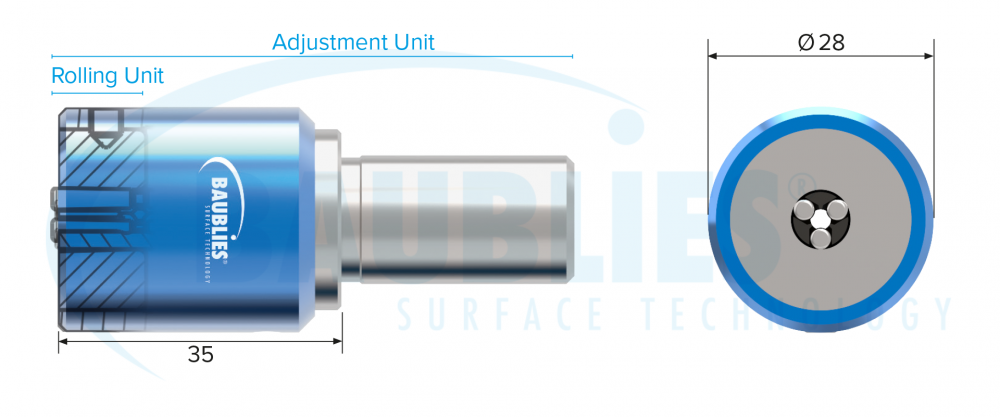

External roller burnishing tool PICCOLINO

Piktogramm Außenbearbeitung Bund

Technical data

Application shaft against collar
Diameter range (Ø) 1.0 up to 7.9 mm
Adjustment range −0.2 up to +0.1 mm
Rolling depth 40 mm
Different rolling depth unlimited with cylindrical shank
Standard fixture cylindrical shank Ø 6–22 mm; Morse taper 1 to 3
Tailor made fixture VDI, HSK etc.
Internal coolant optional, max. 8 bar coolant pressure

Parameters

Workpiece allowance up to 0,01 mm
Tool preclamping up to 0.04 mm
Rotation direction of tool clockwise rotation (M3)
Return traverse in rapid traverse (G0)
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm, tolerance IT 8 or better

PICCOLINO external roller burnishing tools are a particularly compact design for use on machines with limited working space, such as multi-spindle and Swiss-type lathes or rotary transfer machines.

When setting the tool diameter above the  nominal size of the tool then the taper will overlap the cage. Therefore the dimension “X” (see overleaf) will increase. This increase will be about 0.2 mm per 0.01 mm diameter en-largement ( = one mark on the tool scale) of the tool setting.

Tool adjustment

ADVANTAGES

  • Very short machining time
  • Surface finishes of the highest quality
  • High productivity
  • Workpiece is not subjected to lateral forces
  • Both workpiece or tool can be driven
  • Slim design
  • Usable on all common machines
