ARG-2-S

Piktogramm Außenbearbeitung Bund

Technical data

Application shaft against collar

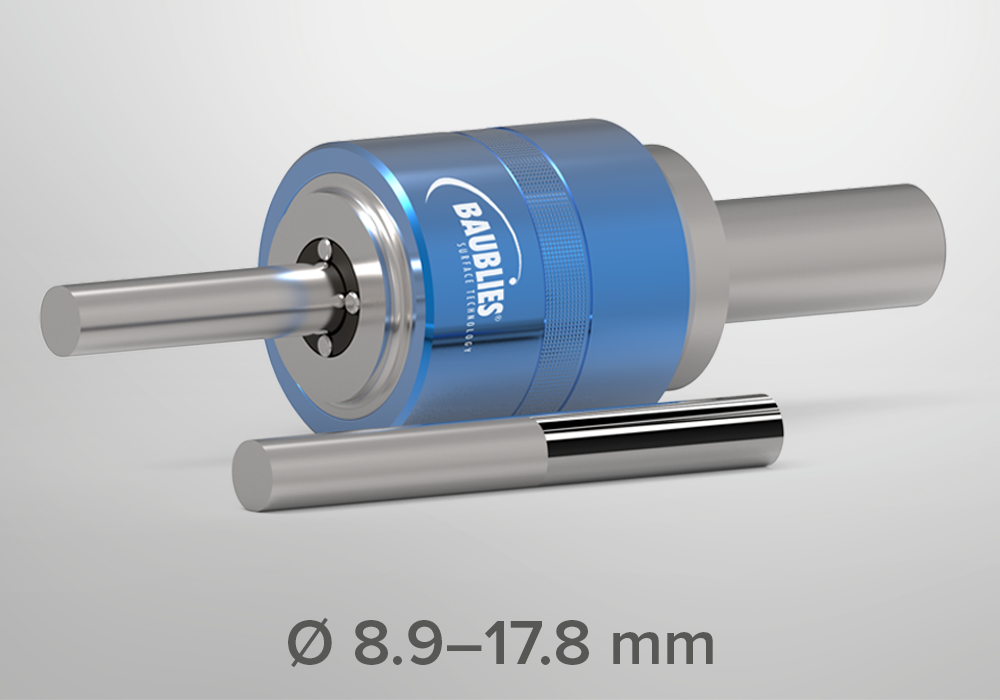

Diameter range (Ø) 8.9 up to 17.8 mm
Adjustment range (V) -0.2 up to +0.1 mm
Rolling depth 50 mm

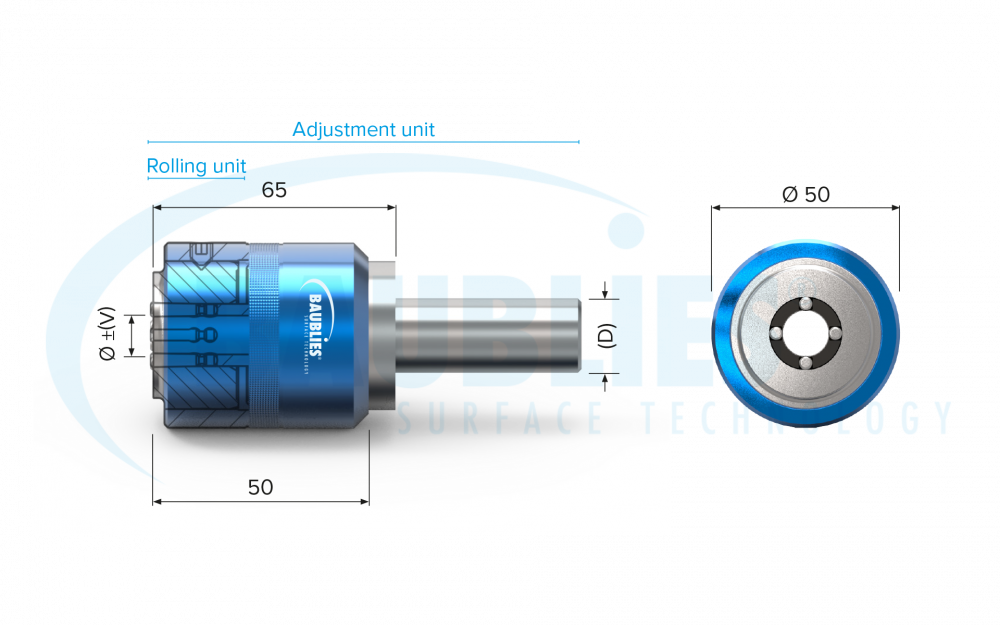

Standard fixture (D) cylindrical shank Ø 10–40 mm; Morse taper 1–3
Internal coolant included
Tailor made fixture VDI, HSK etc.

Parameters

Workpiece allowance up to 0.02 mm
Tool preclamping up to 0.05 mm
Rotation direction of tool clockwise rotation (M3)
Return traverse in rapid traverse (G0)
Lubrication Emulsion or oil; filtering the lubricant (< 40 μm) can improve the surface quality and service life of the tool.
Pre-machining of workpiece Surface roughness up to Rz 15 µm, tolerance IT 8 or better
Workpiece hardness 45 HRC
Internal coolant Max. 8 bar coolant pressure

When setting the tool diameter below the nominal size of the tool then the taper will overlap the cage. Therefore the dimension “X” (see overleaf) will increase. This increase will be about 0.2 mm per 0.01 mm diameter enlargement (  one mark on the tool scale) of the tool setting.


Tool adjustment
One mark on the tool scale  0.01 mm.



BACKWARD BURNISHING WITH EXTERNAL BURNISHING TOOLS IN SPECIALIZED DESIGN

As standard, the surface is burnished using a push feed. All external roller burnishing tools are also available for pulling processing as an option.
